GREEN GBD Series Clean type air handling unit

Type:Clean type air handling unit

● Reliability assurance measures;

●Strength assurance measures;

●Cold bridge prevention measures;

●Overhall sealing measures;

●Noise reduction and sound insulation measures;

●Mildew and corrosion protection measures;

●Excellent thermal insulation property;

●Accurate temperature control;

●Efficient dust removal and sterilization.

Airflow rate

Unit model		Airflow m3/h
Unit model		Coil face velocity m/s
Width modular	Height modular	2	2.25	2.5	2.75	2.85	3	3.5	4	4.5	5
09	06	2176	2448	2720	2992	3101	3264	3808	4353	4897	5441
12	06	3136	3528	3920	4313	4469	4705	5489	6273	7057	7841
09	09	3420	3847	4275	4702	4873	5130	5985	6840	7695	8550
12	09	4929	5545	6161	6777	7023	7393	8625	9857	11089	12322
15	09	6437	7242	8047	8851	9173	9656	11265	12875	14484	16093
12	12	7169	8065	8961	9857	10216	10753	12546	14338	16130	17922
15	12	9363	10534	11704	12875	13343	14045	16386	18727	21068	23409
18	12	11558	13003	14448	15892	16470	17337	20227	23116	26006	28895
21	12	13753	15472	17191	18910	19597	20629	24067	27505	30943	34381
15	15	12290	13826	15362	16898	17513	18434	21507	24579	27651	30724
18	15	15170	17066	18962	20859	21617	22755	26547	30340	34132	37925
21	15	18050	20307	22563	24819	25722	27075	31588	36101	40613	45126
24	15	20931	23547	26163	28780	29826	31396	36629	41861	47094	52327
19	19	19970	22467	24963	27459	28458	29956	34948	39941	44934	49926
21	19	22348	25141	27935	30728	31846	33522	39109	44696	50283	55870
24	19	25914	29153	32393	35632	36928	38871	45350	51828	58307	64785
27	19	29480	33165	36850	40535	42009	44220	51590	58961	66331	73701
22	22	28063	31571	35079	38587	39990	42094	49110	56126	63142	70157
24	22	30898	34760	38622	42484	44029	46346	54071	61795	69520	77244
27	22	35150	39543	43937	48331	50088	52724	61512	70299	79086	87874
30	22	39401	44327	49252	54177	56147	59102	68953	78803	88653	98504
25	25	36485	41045	45606	50166	51990	54727	63848	72969	82090	91211
27	25	39685	44646	49606	54567	56551	59527	69449	79370	89291	99212
30	25	44486	50046	55607	61168	63392	66728	77850	88971	100093	111214
33	25	49286	55447	61608	67768	70233	73929	86251	98572	110894	123215
36	25	54087	60848	67608	74369	77074	81130	94652	108174	121695	135217
36	28	63359	71279	79198	87118	90286	95038	110878	126718	142557	158397
39	28	68982	77605	86228	94851	98300	103474	120719	137965	155210	172456
45	30	82186	92460	102733	113006	117115	123279	143826	164373	184919	205466
48	30	87947	98940	109934	120927	125324	131920	153907	175894	197881	219867
45	33	91970	103467	114963	126459	131058	137956	160948	183941	206933	229926
48	33	98417	110719	123021	135323	140244	147625	172230	196834	221438	246042
45	35	91970	103467	114963	126459	131058	137956	160948	183941	206933	229926
48	35	104699	117786	130874	143961	149196	157045	183223	209398	235572	261747
51	35	111557	125501	139446	153391	158968	167335	195224	223114	251003	278892
54	35	118415	133217	148019	162820	168741	177622	207226	236830	266433	296037
57	36	129333	145499	161666	177833	184299	193999	226332	258665	290999	323332
60	36	136465	153523	170581	187639	194463	204698	238814	272930	307046	341163

QQ截图20200908152610

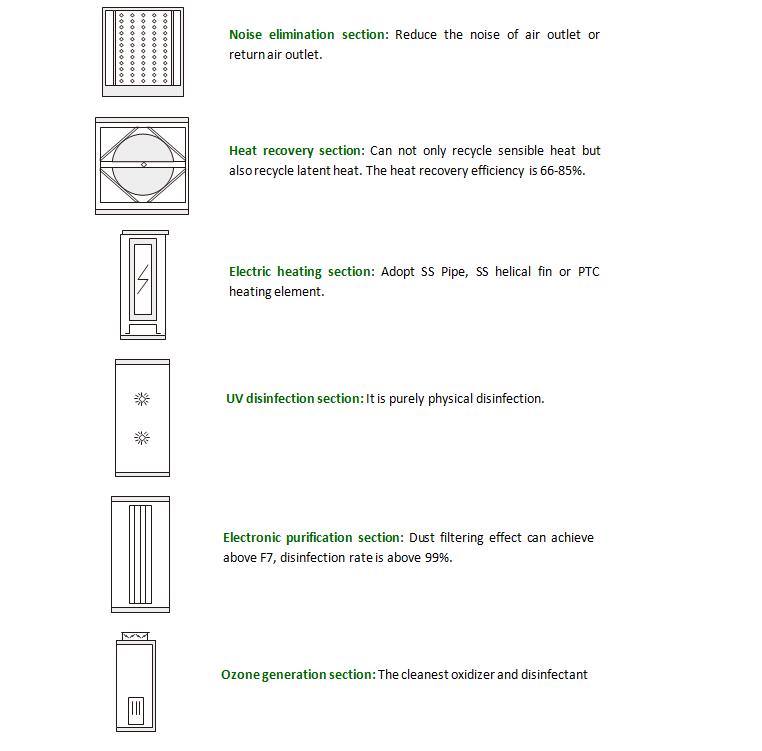

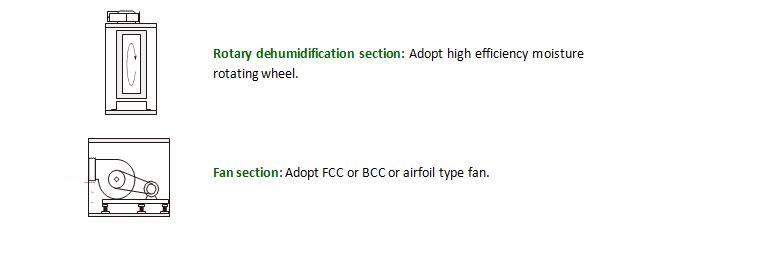

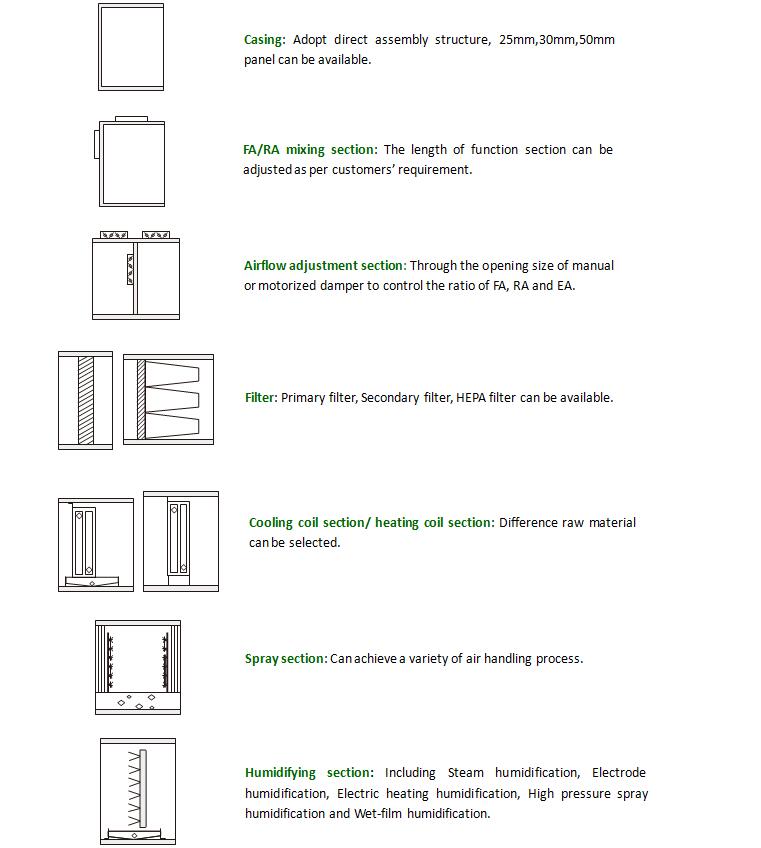

FUNCTIONAL SECTION

function section

GBD series super-clean combined air conditioning unit is widely to applied to the biological purification such as the clean operating room and the relevant supporting areas, the pharmaceutical workshop and laboratories.
In consideration of the features of the clean air conditioning unit series, a variety of advanced functions and solutions combination are adopted, and special components and materials are used.
Flexible combination and tight structure.
Applicable for a variety of on-site power conditions such as hot and cold sources.
Optional DDC or PLC intelligent control system.
Plug fan is for option
Airflow range: 2176-341163m3/h. Pressure bearing capacity of 2500pa
The unit boasts such function as cooling, dehumidification, heating, humidification, filtration &
purification and sterilization.
The flexible combination of various functions can meet diverse needs of the user.
Determination of left or right type: facing the air inlet of the unit, if the piping is on the left, the unit is of the left type; if the piping is on the right, the unit is of the right type.

Functional Section Dimension

Unit model		Rated airflow m3/h	Length (mm)
Width modular	Height modular	Rated airflow m3/h	FA/RA mixing section and discharge air section	Plate filter section	Bag filter section	Mini-plate filter section	Airflow adjustment section	Cooling coil 1-6rows	Cooling coil 8-12rows	Steam. Hot water heating coil section (1-4rows)	Humidifying section	Blank section	Noise elimination section	Fan section (fan type A)	Fan section (fan type B)
09	06	2720	700	100	500	400	1300	600	800	300	600	700	900	900(200)	1100(225)
12	06	3920	700	100	500	400	1300	600	800	300	600	700	900	1100(225)	1100(250)
09	09	4275	600	100	500	400	1200	600	800	300	600	600	900	1100(250)	1200(280)
12	09	6161	600	100	500	400	1200	600	800	300	600	600	900	900(280)	900(315)
15	09	8047	600	100	500	400	1200	600	800	300	600	600	900	900(315)	900(355)
12	12	8961	600	100	500	400	1200	600	800	300	600	600	900	900(315)	1400(355)
15	12	11704	600	100	500	400	1200	600	800	300	600	600	900	900(355)	1000(400)
18	12	14448	600	100	500	400	1200	600	800	300	600	600	900	1000(400)	1100(450)
21	12	17191	600	100	500	400	1200	600	800	300	600	600	900	1100(450)	1200(500)
15	15	15362	600	100	500	400	1200	600	800	300	600	600	900	1700(450)	1800(500)
18	15	18962	600	100	500	400	1200	600	800	300	600	600	900	1200(500)	2000(560)
21	15	22563	600	100	500	400	1200	600	800	300	600	600	900	1200(500)	1300(560)
24	15	26163	600	100	500	400	1200	600	800	300	600	600	900	1300(560)	1500(630)
19	19	24963	800	100	500	400	1200	800	900	300	600	600	900	1300(560)	2300(630)
21	19	27935	800	100	500	400	1200	800	900	300	600	600	900	2300(630)	2400(710)
24	19	32393	800	100	500	400	1200	800	900	300	600	600	900	1500(630)	1700(710)
27	19	36850	800	100	500	400	1200	800	900	300	600	600	900	1700(710)	1800(800)
22	22	35079	800	100	500	400	1500	800	900	300	600	600	900	2400(710)	2600(800)
24	22	38622	800	100	500	400	1500	800	900	300	600	600	900	1700(710)	2600(800)
27	22	43937	800	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(900)
30	22	49252	800	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(900)
25	25	45606	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(900)
27	25	49606	1000	100	500	400	1500	800	900	300	600	600	900	1800(800)	2100(1000)
30	25	55601	1000	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
33	25	61608	1000	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
36	25	67608	1200	100	500	400	1500	800	900	300	600	600	900	2100(900)	2200(1000)
36	28	79198	1200	100	500	400	1500	800	900	300	600	600	900	2400(800*2)
39	28	83120	1200	100	500	400	1500	800	900	300	600	600	900	2400(800*2)
45	30	101772	1200	100	500	400	1500	1000	1200	600	600	600	900	2400(800*2)
48	30	108973	1200	100	500	400	1500	1000	1200	600	600	600	900	2700(900*2)
45	33	113888	1200	100	500	400	1800	1000	1200	600	600	600	900	2700(900*2)
48	33	121946	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000*2)
45	35	121158	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000*2)
48	35	129730	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000*2)
51	35	138303	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000*2)
54	35	146875	1200	100	500	400	1800	1000	1200	600	600	600	900	3000(1000*2)
57	36	161665	1200	100	500	400	1800	1000	1200	600	600	600	900	3550(1120*2)
60	36	200000	1200	100	500	400	1800	1000	1200	600	600	600	900	3750(1250*2)

Note:

The length of energy recovery section, dehumidifying section and other functional sections should be selected according to special requirement.The length of activated carbon section is 900mm;
The dimension of the mixing section and air discharge section are standard size, if have special requirement on the size and position of air spigot, we can do customized design;
The length of humidifying section can be adjusted according to the humidify requirement and humidification methods;
The welt-film humdifier is installed behind of the cooling coil section, there is no blank section needed. If it is installed separately, 6 modular space is needed;
In order to easy maintenance and service, a blank section is needed before filter section, cooling coil section, heating section and noise eliminated section;
The data in the above sheet is only for reference, the final design will add or minus functional section according to detail requirement;
If there are any other special requirement on the functional section, please contact with Green directly.
