Green GACH Series Air Cooled Precision AC Units

Type: Air cooled precision AC units
Cooling capacity: 11.9kw ~120kw
Model Number: Customize
Operating Voltage: 380/400 VAC
Key Selling Points: Famous brand component
Refrigerant: R22/R407C/R410A
Availability:
Quantity:
  • GACH050~GACH500

  • GREEN

  • GREEN-7

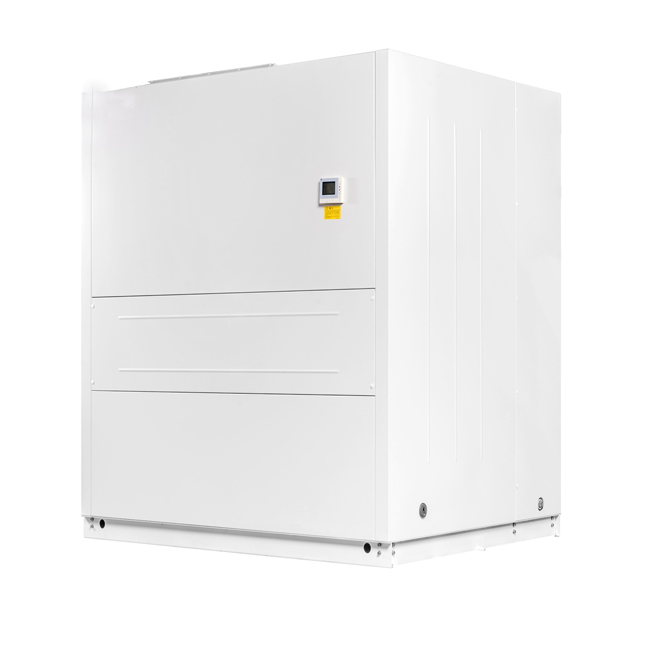

Air cooled precision AC units



Type: Air cooled precision AC units

Cooling capacity: 11.9kw ~120kw

Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R407C/R410A

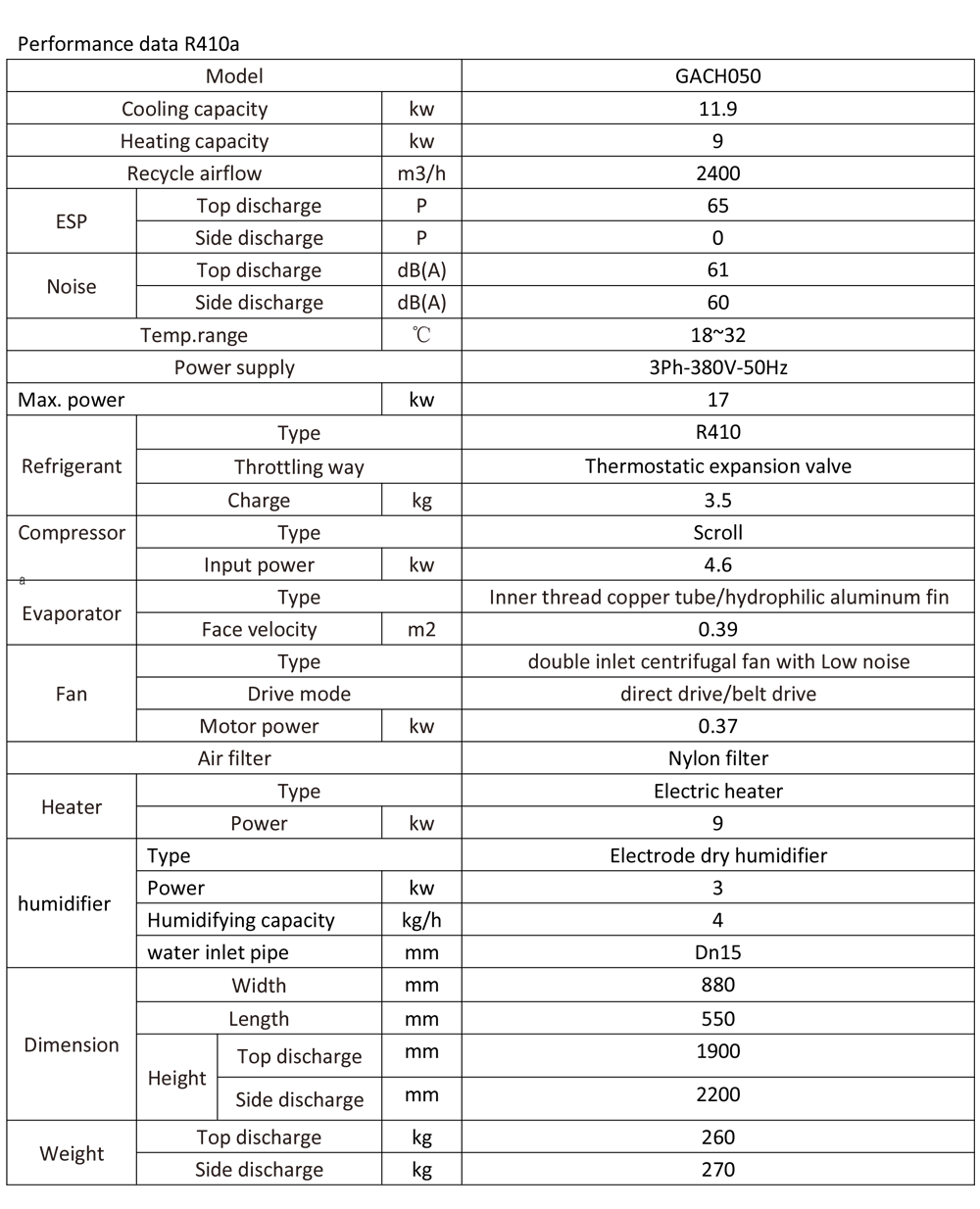

Air cooled precision AC units performance data



Note:

  1. The cooling capacity is based on nominal air flow rate:  indoor temp. 24℃(DB)/17℃(WB), outdoor temp. 35℃(DB)

  2. Normal operation range:Cooling: indoor air inlte temp.18-32℃,outdoor air inlet temp. 18-43℃; Heating: The max. indoor air inlet temperature is 27℃.




Type: Air cooled precision AC units

Cooling capacity: 11.9kw ~120kw Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R407C/R410A

  • Frame structure design and elegant appearance.Controller status display, parameter editing and fault review functions are available on Chinese menu for easy operation.

  • Consistent quality and reliable performance. Use branded auto-control components for the refrigeration system manufactured by DANFOSS, SAGINOMIYA, ALCO. use controller manufactured by LG, SIEMENS.

  • Unit completed with HP/LP, discharge temperature, fan and compressor overload relay, to ensure safe operation.

  • Evaporator is using high-purity riffled hydrophilic corrugated alumimum fins with high coefficient of heat transfer.

  • Use state-of-the-art hermetic compressor, with high EER and quiet operation.

  • Microcomputer controller with well-adaptive and accurate control, temperature control accuracy can be reached ±1℃.

  • Microcomputer controller has automatic control functions of fault diagnosis, energy management, operation mode


Dimension

Width:880 mm

Length:550 mm

Height

Top discharge:1900 mm

Side discharge:2200 mm
