Green GSA Series Air Cooled Ducted Type Split Units

Type: DX split ducted units
Cooling capacity: 12.2kw ~112kw
Model Number: Customize
Operating Voltage: 380/400 VAC
Key Selling Points: Famous brand component
Refrigerant: R22/R407C/R410A
Availability:
Quantity:
Inquire Add to Basket

  • GSD050/H-B GSA050/H-B~GSD500/H-B GSA300/H-B*2

  • GREEN

  • GREEN-6


DX split ducted units



Type:Air Cooled Ducted Type Split  Units

Cooling capacity: 12.2kw ~112kw

Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R407C/R410A


Performance data R410a


Model Indoor unit GSD050/H-B GSD060/H-B GSD080/H-B GSD100/H-B GSD125/H-B GSD140/H-B GSD200/H-B GSD250/H-B GSD320/H-B GSD420/H-B GSD500/H-B
Outdoor unit GSA050/H-B GSA060/H-B GSA080/H-B GSA100/H-B GSA125/H-B GSA140/H-B GSA150/H-B GSA300/H-B GSA140/H-B*2 GSA150/H-B*2 GSA300/H-B*2
Rated   cooling capacity kw 12.2 14.3 19.5 24.5 28.6 39 48.7 55.8 78 98 112
Rated   heating capacity kw 13.6 15.7 21.6 27.2 31.5 43.2 53.9 61.9 86.4 108 124
Power   supply                                                                                                                                                    3Φ-380V-50Hz
Input power Cooling  kw 4.7 5 7.2 9.7 10.1 14.6 21.3 25.5 31.7 43.7 50.5
Heating kw 4.4 4.7 6.5 9.7 9.6 14.4 19.4 23.5 31.3 39.9 46.5
Rated current Cooling  kw 12.4 12.5 17.9 24.7 27.9 27.6 39.7 47 59.3 80.9 92
Heating kw 11.9 12 17 23.7 26.9 25.8 36.5 44 55.7 75.3 86
Indoor unit airflow m3/h 2500 2900 4300 5100 6150 7500 10000 12000 15000 20000 24000
ESP Pa 80 80 100 100 100 150 150 200 200 200 250
drive mode                                               Three speed direct drive                                                                       Belt drive
Dimension (W*L*H) mm 958*920*610  1100*920*610  1294*920*610  1500*920*610 1780*920*610  1780*1260*835  1785*1310*975  1990*1335*975 2090*1345*1080  2140*1760*1480  2290*2080*1950
Weight kg 85 110 137 175 230 275 300 315 390 430 460
Condensate pipe                                                                                                                                                               1”
Filter Type                                                                                                                                             Washable nylon filter
Size mm 576*473*15 696*473*15 450*473*15 560*473*15 699*473*15 670*622*15 698*810*15 770*810*15 928*845*15 699*470*15 699*725*15
Quantity 1 1 2 2 2 2 2 2 2 3 3
Outdoor unit Dimension   (W*L*H) mm 817*684*957 817*684*957 770*770*1152 1403*821*979 1558*882*1140 1558*882*1190 1806*1090*1181 1809*1019*1185 1558*882*1190 1806*1090*1181 1809*1019*1064
Weight kg 95 106 160 245 260 320 490 545 320 490 545
Refrigerant Type                                                                                                                                                      R410a
Charge kg 3.5 4.3 5.7 2*3.5 2*4.5 2*5.0 2*7.2 2*11 4*5.0                         4*7.2 4*11
Connection pipe connect   method   Flare   joint                   Welding                Flare joint                  Welding    Flare   joint                                        Welding
Liquid pipe Φ mm(in) Φ12.7(1/2”) Φ12.7(1/2”) Φ12.7(1/2”) 2*Φ12.7(1/2”) 2*Φ12.7(1/2”) 2*Φ12.7(1/2”) 2*Φ16(5/8”) 2*Φ16(5/8”) 4*Φ12.7(1/2”) 4*Φ16(5/8”) 4*Φ16(5/8”)
Gas pipeΦ mm(in) Φ19.5(3/4”) Φ19.5(3/4”) Φ22.2(7/8”) 2*Φ19.5(3/4”) 2*Φ19.5(3/4”) 2*Φ22.2(7/8”) 2*Φ28.6(1-1/8”) 2*Φ28.6(1-1/8”) 4*Φ22.2(7/8”) 4*Φ28.6(1-1/8”) 4*Φ28.6(1-1/8”)


Note:

  1. Nominal cooling capacity:  indoor temp. 27℃(DB)/19℃(WB), outdoor temp. 35℃(DB)

  2. Nominal heating capacity:  indoor temp. 20℃(DB), outdoor temp. 7℃(DB)/6℃(WB)

  3. The cooling/heating capacity are based on the length of the indoor connection pipe is 7.5m

  4. The air flow of the three-speed direct drive fan refers to the air flow in high speed, and the ESP is the external static pressure value under the nominal air flow

  5. For the unit with welding joint, refrigerant is not injected in the system when leaving the factory

  6. Specifications and performance will be changed due to product improvement. Please refer to the nameplate on the machine.





Detailed Images

1.ENERGY EFFICIENT

Adopt world class famous hermetic scroll compressor, with lower noise and less vibration, efficient and energy saving.

Normally, the unit adopts multiple refrigeration system groups, up to 4 systems, which can realize multi-stage regulation of cooling capacity and reduce operating costs. Each refrigeration system is completely independent, in the case of a system failure, will not affect the normal work of other systems, can keep the machine running under the condition of the fault system maintenance.

High efficiency evaporator. Coils are manufactured from seamless copper tubes mechanically expanded into aluminum fins. The total heat transfer coefficient is higher than 30% of ordinary heat exchanger.

The air inlet of the indoor unit matched with flange, the air duct is connected simply, and with access door to easy maintenance.

涡旋压缩机

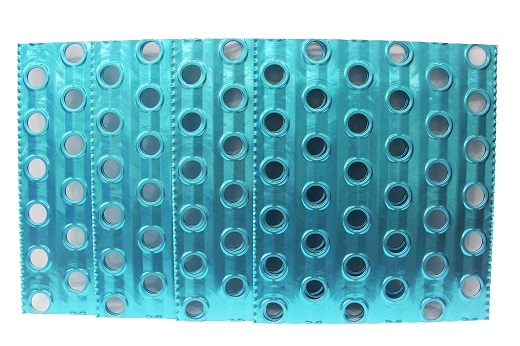

亲水铝箔铜管

2.EXCELLENT QUALITY

Outdoor unit structure is simple. Disassembling the access panel can access any component without interfering normal operation of other systems.

The unit can provide a variety of optional accessories to meet the different needs of users, such as: auxiliary electric heating, condensing pressure controller.

Excellent performance heat exchange can provide cooling and heating mode in bad weather.

Preeminent defrosting system is able to completely defrost the system in cold winters, maintaining good heating performance and ensuring comfortable indoor environment.

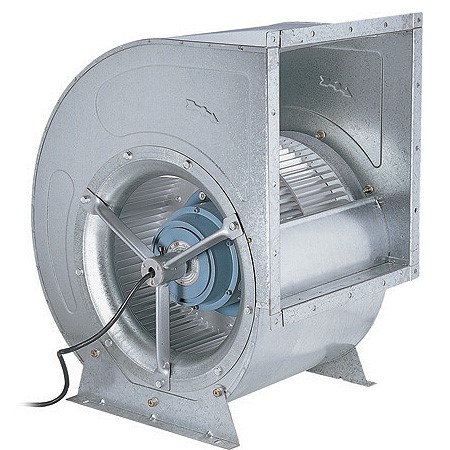

Low noise fan has gone through dynamic balancing and static balancing test. It operates quietly with low noise and low vibration.

Double expansion valve design, improve heating/cooling performance.

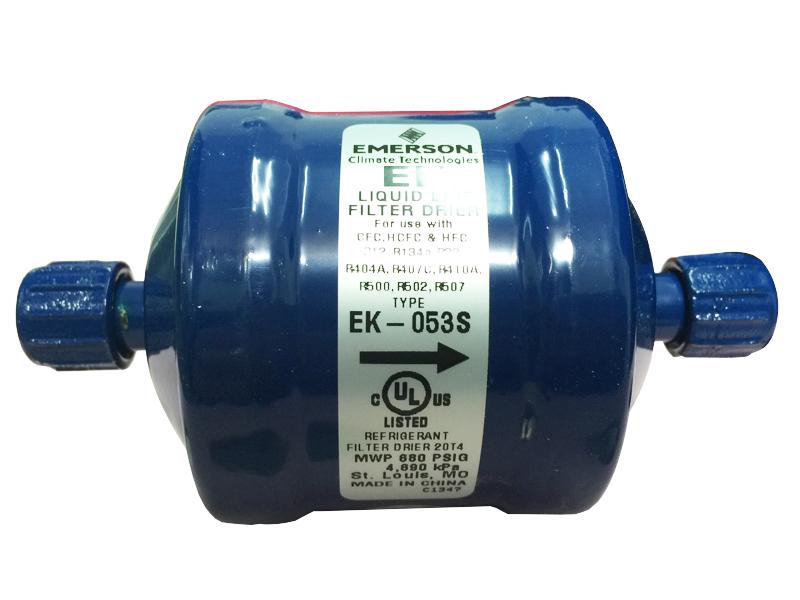

干燥过滤器风机


3.INTELLIGENT CONTROL

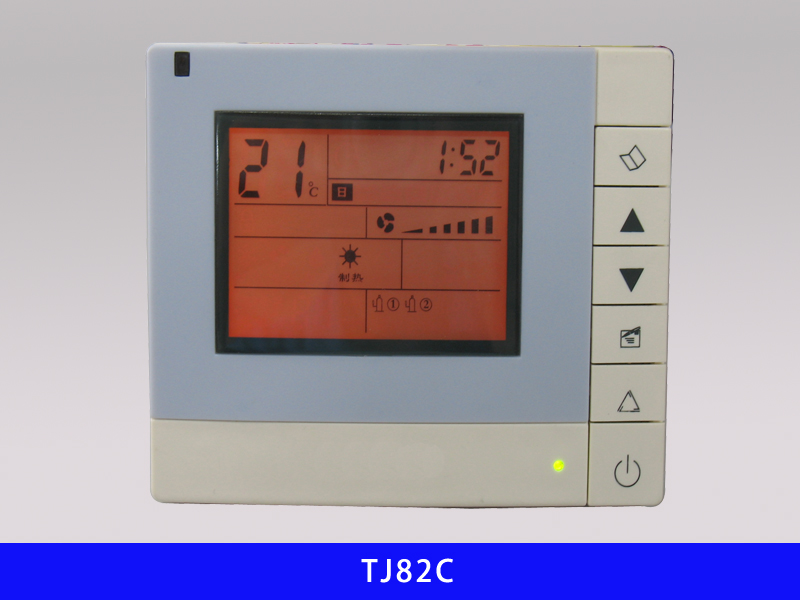

Microcomputer intelligent controller can realize cooling, heating and other functional modes, with timer switch, automatic detection, fault alarm, optional communication interface, remote monitoring and group control of the unit.



controller
