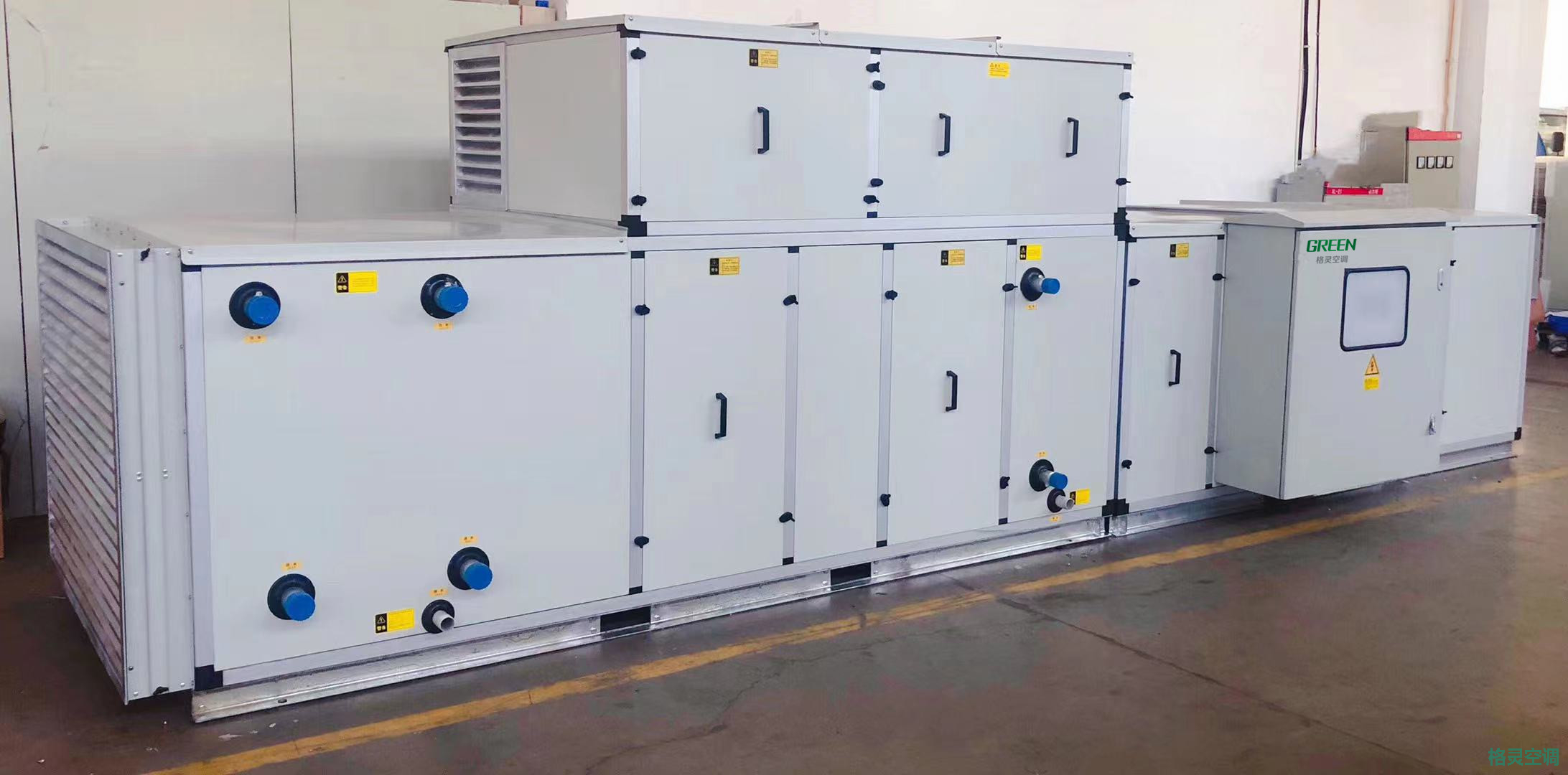

GREEN GWH series Combined Type Rotor Dehumidifier

Main features

Working principle

GWH series Combined Type Rotor Dehumidifier is a combination of precise dehumidification and refrigeration dehumidification. After processing the unit to cool down and dehumidify the inlet air, and then dehumidify the wheel in depth, the absolute moisture content of the processed air meets the design requirements, and then it is cooled down to the design temperature after the subsequent stage table cooling, so that the unit's outlet temperature and relative humidity All can meet the requirements of users and achieve the dehumidification effect of normal temperature and low humidity.

When using the GWH series rotary dehumidifier air conditioner unit, the user needs to provide chilled water with T≤7 ℃; or the refrigeration unit provided by our company to provide the corresponding cooling capacity load randomly.

Product advantage

■ Application: widely used in electronics, pharmaceutical, glass synthesis, battery, military industry and other industries where humidity requirement is less than 45%;

■ Food processing: fudge, gelatin candy, chocolate, seed bank, bubbling sugar, chewing gum, etc;

■ Pharmaceutical industry: soft capsule, tablet, icing, powder, extraction, culture room and other process production;

■ Electronic battery: packaging, assembly, equipment, battery process;

■ Other industries: precision manufacturing, rubber tires, weapons and military industry, etc.

Function section

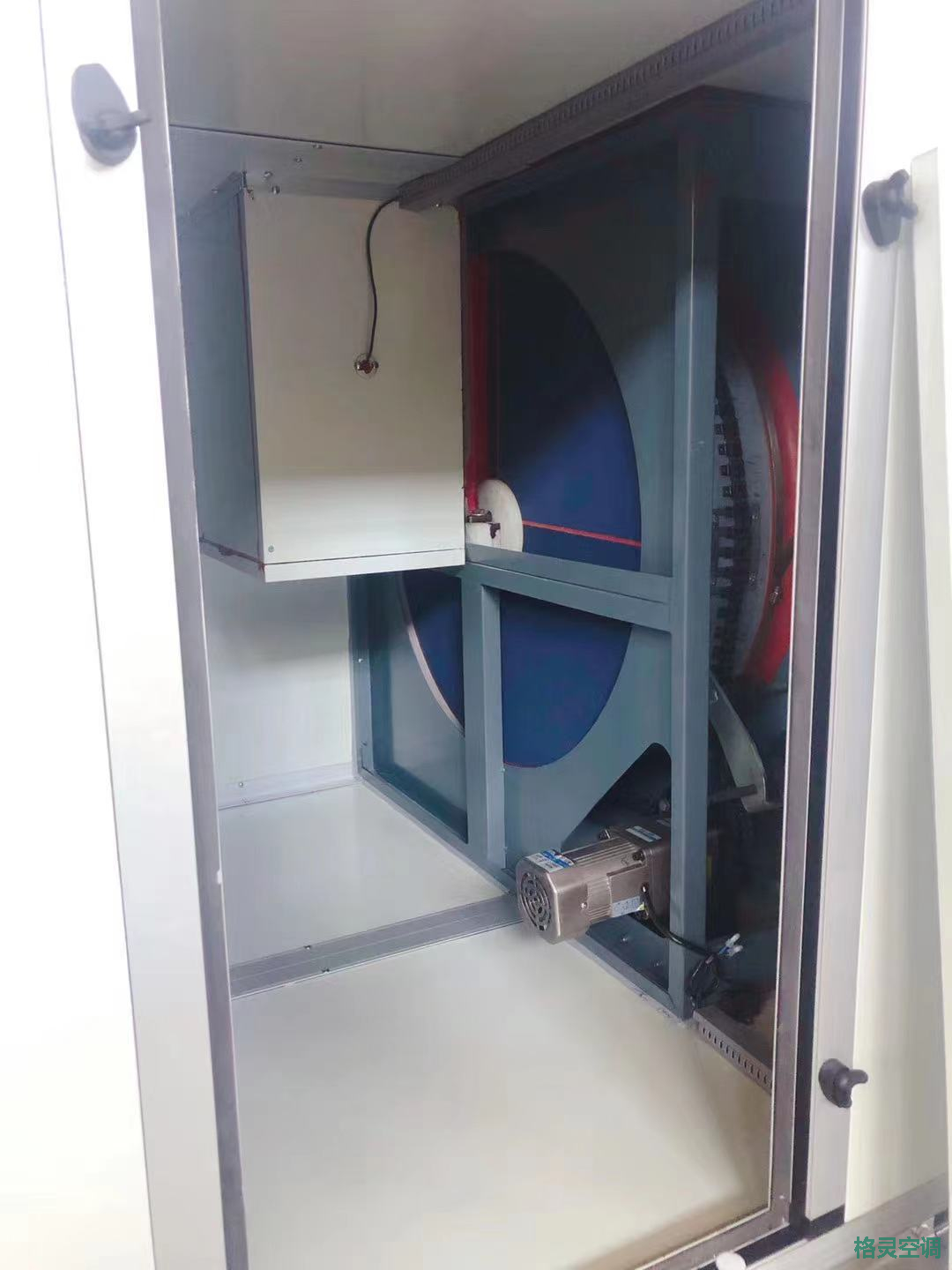

■ Rotating wheel dehumidification section (including drying rotating wheel, regenerative fan, regenerative heating, regenerative filter and regenerative valve);

■ Process fan section;

■ Front heat exchanger section, back heat exchanger section;

■ Process air primary filter section, process air secondary filter and HEPA filter section (optional), mixing section;

■ Electrical control panel (box).

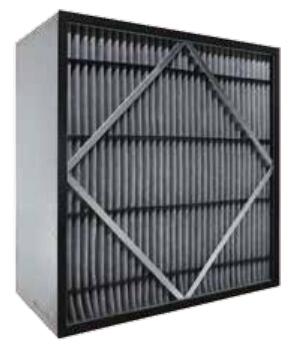

Chemical filter

Chemical filter is used in AHU unit, is widely used as a gaseous molecular pollutant control method and gaseous corrosion control method.

■Feature

Low initial resistance, no increasing pressure loss
Reduce operating costs of HVAC system
Easy to installation

Improve room air quality
Less dust

■Parameter

                                                Applicable face velocity：<2.5m/s
                                               Can target different types of gaseous molecular pollutants（AMC)
                                               Use the appropriate filter material formulation

■Loss of pressure table

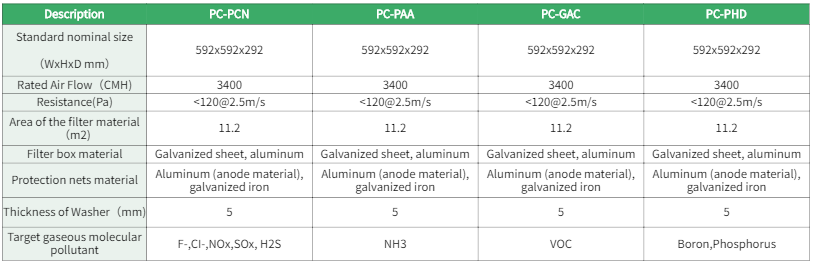

■Parameter

The above standard nominal size refers to the standard full-size Puro-C product, and the half-size Puro-C size is 287x592mm (WxH).

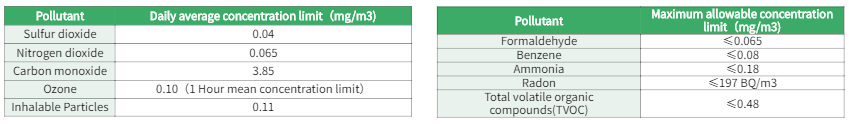

■The scope of chemical filter is in accordance with the environmental cleanliness parameter

Project

1.Combined Type Rotor Thermostatic and Humidistat purification Dehumidifier (Ceramic storehouse, Stone storehouse, Turnover storehouse)

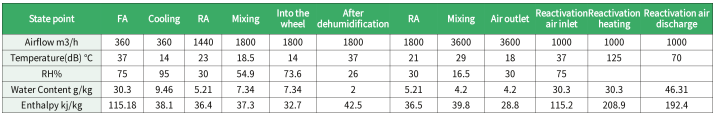

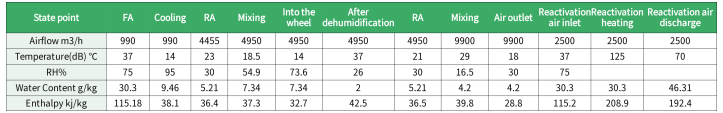

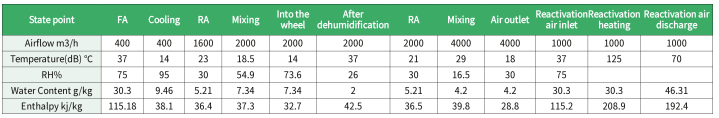

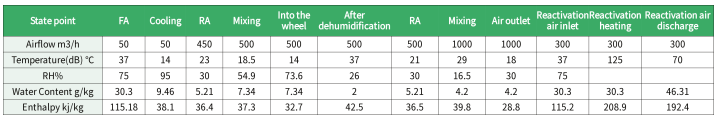

Process the status point parameter:

2.All fresh air Rotor Thermostatic and Humidistat purification Dehumidifier

3. Combined Type Rotor Thermostatic and Humidistat purification Dehumidifier (Calligraphy and painting library, spare library)

4. Combined Type Rotor Thermostatic and Humidistat purification Dehumidifier (Metal storehouse)
