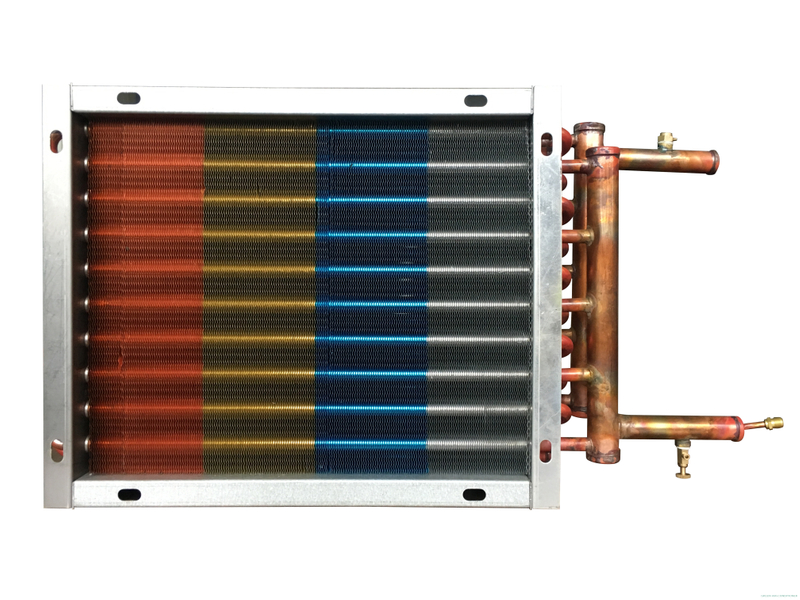

GREEN Heat Exchanger

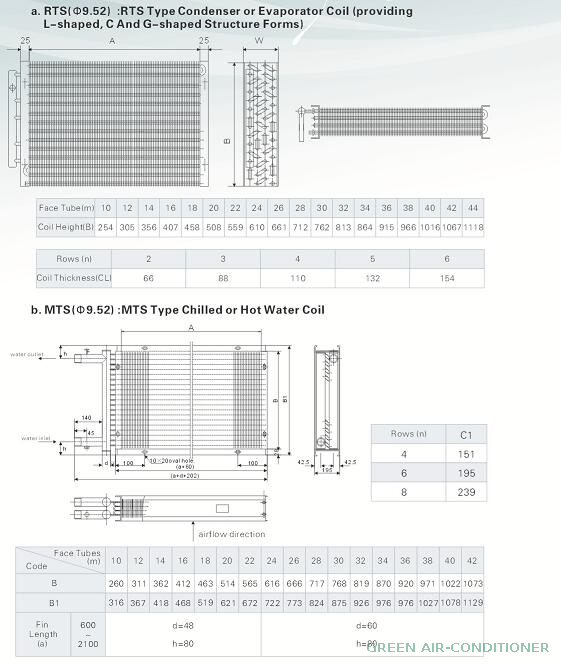

Model:RTS(Φ9.52):RTS Type Condenser or Evaporator
MTS(Φ9.52):MTS Type Chilled or Hot water coil

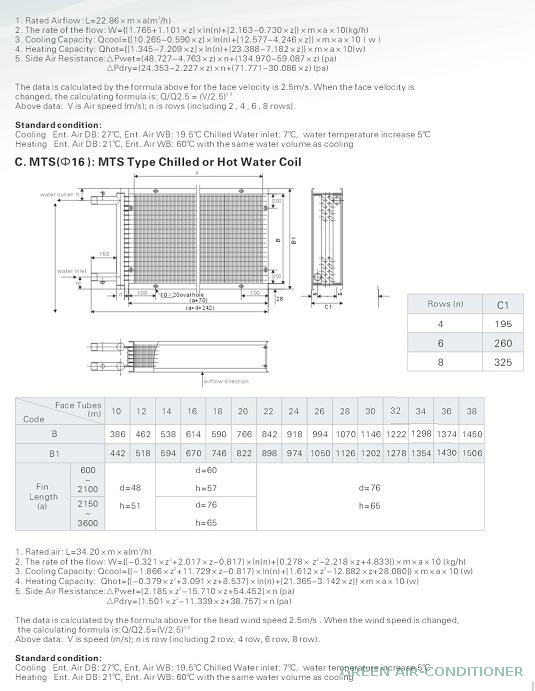

MTS(Φ16):MTS Type Chilled or Hot water coil
Power:1-500KW
Customization:Customized logo /Customized packaging
Availability:
Quantity:
  • RTS

  • GREEN

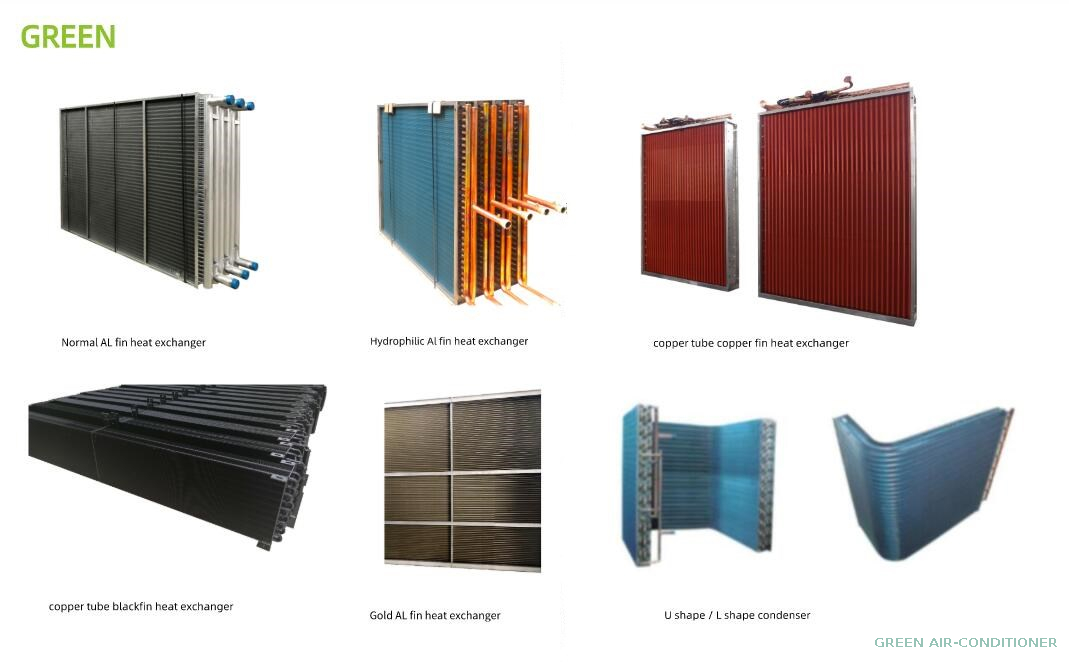

heat exchanger series

















Heat Exchanger Specification

  1.  Tube material: carbon steel/ copper tube

  2.  Fin material: Hydrophilic, bare, black foil, copper foil, gold foil

  3.  Frame material: galvanized steel/Zinc galvanized steel/Stainless steel

  4.  Fin type: Flat fin, Corrugated fin, Louvered / Lanced fin

  5. Tube: diameter 7mm, 7.94mm, 9.52mm, 12.7mm, 15.88mm.

     internal thread or smooth tube.

  6.Use media: water/steam/refrigeration.

   7. Tube rows:2rows, 3rows, 4rows, 6rows, 8rows,etc.

  8. Widely used in refrigeration industry, cold room and other cooling system.

  We can supply products as per customized samples or drawing.

TOOLING SPECIFICATION

Item

Tube diameter(mm)

Fin pitch/Geometry

Fin surface

FPI(mm)

1

Φ7

21*18.2

louvered fin . Sine wave fin. Flattop fin.

1.2-3.0

21*12.7

louvered fin . Sine wave fin. Flattop fin.

1.2-2.5

19.05*16.5

louvered fin . Sine wave fin. Flattop fin.

1.2-2.5

2

Φ7.94

25.4*22

louvered fin . Sine wave fin. Flattop fin.

1.5-3.0

22*19.05

louvered fin . Sine wave fin. Flattop fin.

1.5-3.0

3

Φ9.52

25.4*22

louvered fin . Sine wave fin. Flattop fin.

1.5-5.5

25*21.65

louvered fin . Sine wave fin. Flattop fin.

1.5-5.5

4

Φ12.7

31.75*27.5

 Sine wave fin.   Flattop fin.

1.5-6.0

38.1*33

 Sine wave fin.   Flattop fin.

1.5-9.0

5

Φ16

38.1*33

 Sine wave fin.   Flattop fin.

1.5-6.0

50*50

 Sine wave fin.   Flattop fin.

1.5-10.0





Model:RTS(Φ9.52):RTS Type Condenser or Evaporator

           MTS(Φ9.52):MTS Type Chilled or Hot water coil

           MTS(Φ16):MTS Type Chilled or Hot water coil

Power:1-500KW

Customization:Customized logo /Customized packaging


12

Packing & Delivery

微信图片_20200511134940微信图片_20200511134900微信图片_20200511134900
