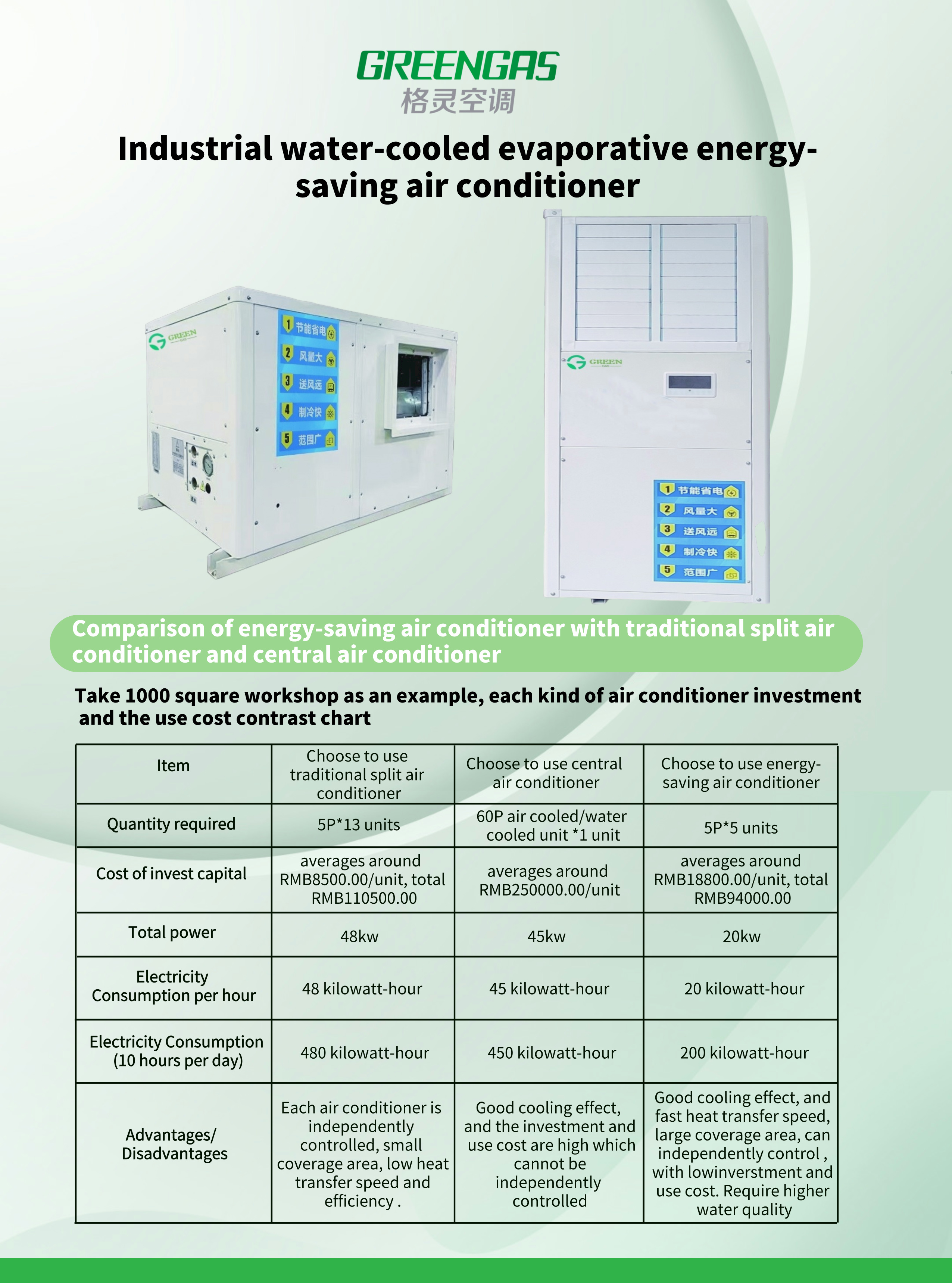

Green SD Series industrial water-cooled evaporative energy-saving air conditioner

Type: Industrial water-cooled evaporative energy-saving air condtioner

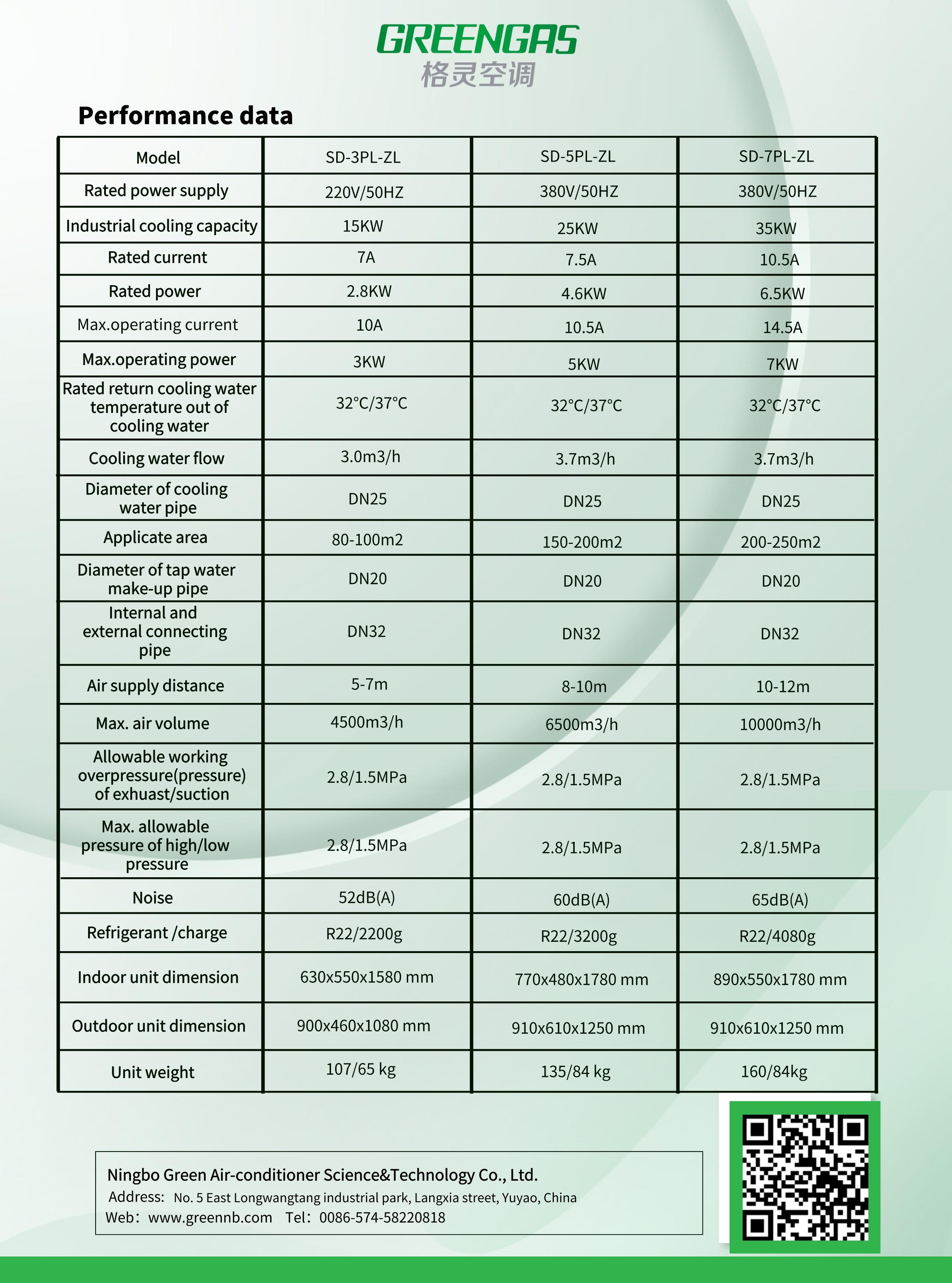

Cooling capacity: 25kw-35kw

Model Number:SD-5PL~SD-7PL

Operating Voltage: 380/400 VAC

Key Selling Points: Evaporative energy-saving air conditioning unit works in a combination of water cooling air cooling and compressor. First, the external unit uses wet curtain evaporative condensation technology to cool the circulating water, After the water temperature drops to normal temperature, it flows through the heat exchange system of the internal unit (at this time, the compressor has been operated, and the refrigerant has been compressed into a high temperature and high pressure state) to take away most of the heat of the high temperature refrigerant and form a normal temperature refrigerant. The normal temperature refrigerant then passes through the throttle valve and becomes a low temperature and low pressure refrigerant. It is sent to the upper part of the evaporator of the internal unit to blow out cold air.

The circulating water that has overheated the high temperature and high pressure refrigerant, Then, the water is pumped to the upper part of the outdoor unit. At the same time,

the air cooled water flows through the evaporating water curtain again to turn the high-temperature water into the normal temperature water,and then flows through the indoor unit again to cool the refrigerant under high temperature and pressure.

The cycle operation will maximize the energy efficiency ratio, so as to reduce energy consumption.

Refrigerant: R22
