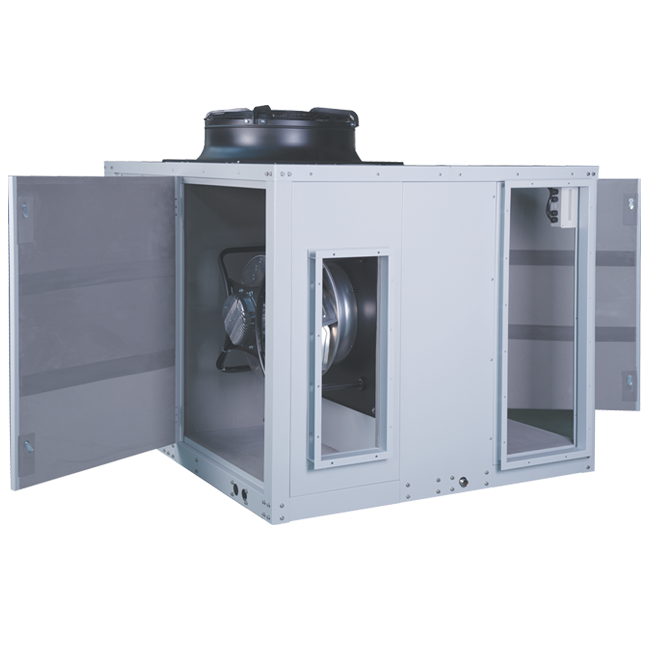

Green GRA Series DX Package Units

Type: DX package units

Cooling capacity: 13.18kw ~197kw

Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R407C/R410A

Performance data R410a

Model				GRA050/H-B	GRA060/H-B	GRA080/H-B	GRA100/H-B	GRA125/H-B	GRA140/H-B	GRA200/H-B	GRA250/H-B	GRA300/H-B	GRA400/H-B	GRA480/H-B	GRA560/H-B	GRA720/H-B	GRA900/H-B
Performance	Total cooling capacity		kw	13.18	14.31	19.55	26	29.8	39.1	44.84	59.66	65.68	89.68	119.32	131.36	178.98	197
	Heating capacity		kw	14.57	15.69	21.65	28.8	33.1	43.3	49.68	66.14	72.82	99.36	132.28	145.64	198.42	218.5
	Rated airflow		m3/h	2500	3000	4000	5000	6500	9700	10080	12600	14000	20000	25000	30000	35000	40000
	ESP		P	150	160	170	150	200	250	300	300	300	350	350	400	420	450
	Noise		dB(A)	66	68	68	70	70	70	72	72	72	74	74	76	78	78
	Total power		kw	4.7	5.22	7.87	9.25	11.21	15.08	17.12	23.42	26.72	34.5	46.38	53.48	73.32	78.72
	Power supply		Ph/V/Hz	3/380/50
Refrigerant system	Refrigerant	Type		R410a
		Throttling way		External balanced thermal expansion valve
		Charge	kg	4	4.8	6.4	8	10	11.2	2*8.0	2*10	2*11.2	4*8	4*10	4*11.2	6*10	6*11.2
	Compressor	Type		Hermetic Scroll
	Compressor	Nominal power	kw	4.2	4.3	6.07	7.78	8.97	2*6.07	2*6.07	2*8.97	2*9.87	4*6.7	4*8.97	4*9.87	6*8.97	6*9.87
	Evaporator	Type		Inner thread copper tube/hydrophilic aluminum fin
	Evaporator	Face velocity	m2	0.29	0.38	0.5	0.61	0.82	2*0.55	2*0.59	2*0.77	2*0.82	2*1.42	2*1.78	2*1.78	2*2.13	2*2.56
	Condenser	Type		Inner thread copper tube/hydrophilic aluminum fin
	Condenser	Face velocity	m2	0.49	0.55	0.76	0.99	1.14	2*0.73	2*1.0	2*1.07	2*1.1	4*1.25	4*1.43	4*1.43	6*1.43	6*1.43
	Condenser fan	Type/drive mode		Low noise axial flow/direct drive
	Condenser fan	Motor power	kw	0.18	0.37	0.37	0.37	2*0.37	2*0.37	4*0.18	4*0.37	4*0.37	4*0.55	4*0.75	4*0.75	6*0.75	6*0.75
Supply fan	Type			double inlet centrifugal fan with Low noise
	Drive mode			direct drive					belt drive		direct drive					belt drive
	Power		kw	0.32	0.55	0.8	1.1	1.5	2.2	3	4	5.5	5.5	7.5	11	15	15
Dimension	Length		mm	1160	1360	1650	1650	1800	2300	2500	2550	2600	4660	5010	5100	5640	6040
	Width		mm	1050	1190	1170	1560	1800	1850	1850	2100	2130	2080	2080	2080	2080	2080
	Hength		mm	845	865	915	860	1010	1305	1450	1580	1580	2000	2400	2400	2500	2500
Running weight			kg	170	238	290	380	415	510	610	800	980	1170	1250	1360	1550	1650

Note:

Nominal cooling condition:air inlet temp.27℃（DB）/19℃(WB)，ambient temp.35℃；Nominal heating condition: air inlet temp.21℃，ambient temp.7℃
The cooling only unit without heating function, others same as heat pump unit.
The above performance improved without prior notice.

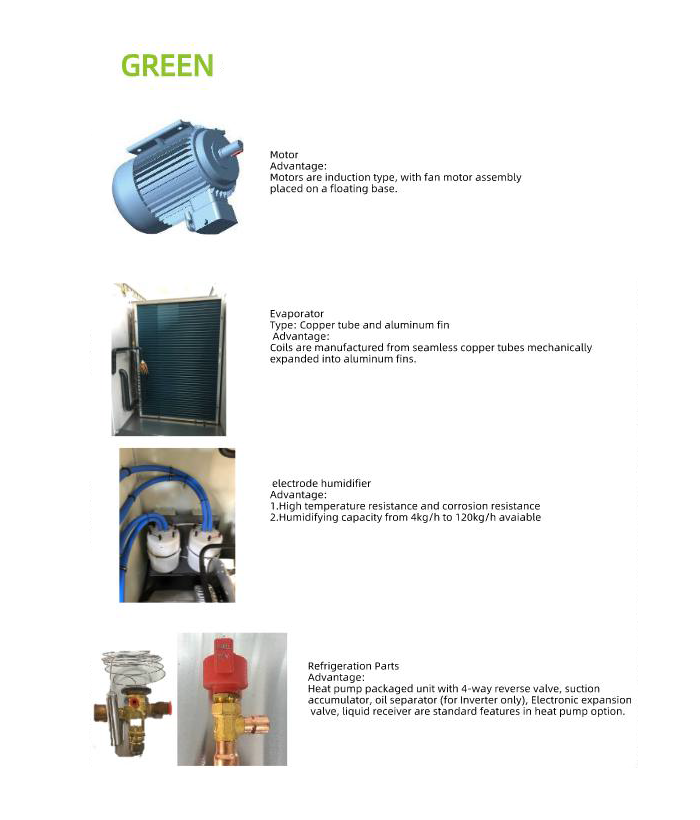

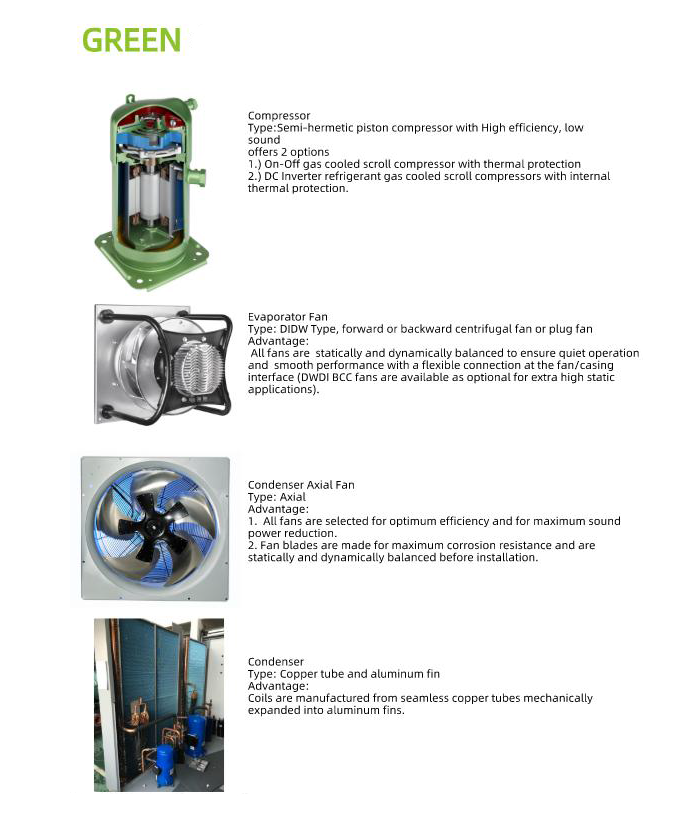

Detailed Images

Use cutting-edge hermetic scroll compressor with ultra high efficiency which is 12% higher than that traditional piston compressor. In transition season, the unit will run with 100% fresh air method to save energy significantly.
International famous brand of components and parts, good quantity and low noise.
Use high efficiency fan with sound insulation structure,greatly reduce the unit's vabration.
AC units are factory tested and factory charged with refrigerant. Users are only required to connect the units to the mains power and air ducts.
User friendly and flexible control. Come with two options:electromechanical control or micro computer control.
