Green GPW Series Water Cooled Package Units

Type: Water cooled package units
Cooling capacity: 16.2kw ~144kw
Model Number: Customize
Operating Voltage: 380/400 VAC
Refrigerant:R410A
Key Selling Points: Famous brand component
Availability:
Quantity:
  • GPW008-GPW070

  • GREEN

water cooled package units





Quick Details

Type: Water cooled package units

Cooling capacity: 16.2kw ~144kw

Model Number: Customize

Operating Voltage: 380/400 VAC

Refrigerant:R410A

Key Selling Points: Famous brand component


Performance data R410A

Model GPW008 GPW010 GPW016 GPW020 GPW025 GPW030 GPW040 GPW050 GPW060 GPW070
Performance data Cooling   capacity kw 16.2 22.4 32.4 48.6 57.2 72 87.7 100.6 108 144
Electric heating capacity kw 6 9 12 20 27 35 40 50 50 58
Recycle airflow m3/h 2,500 4,100 5,500 8,600 12000 15000 18000 21000 23000 27000
ESP P 60(0) 80(0) 80(0) 100(0) 100(0) 150 200 200 200 300
Noise dB(A) 52(51) 58(56) 60(59) 61(60) 69(68) 71 73 74 75 76
Power supply 380V/3P/50Hz
Power kw 3.8(3.8) 6.1(5.9) 7.9(7.9) 12.4(11.7) 15.4(14.5) 21.3 25.5 29.5 31.2 42.6
Refrigerant Type R410A
Throttling way External balanced thermostatic expansion valve
Charge kg 2.5 1.5*2 1.9*2 1.9*3 4*2 4.5*2 4*3 4*3 4*4 4*4
Refrigeration system Compressor Type High efficiency scroll compressor
Qty pc 1 2 2 3 2 2 3 3 4 4
Evaporator Type Inner threaded copper tube/corrugated aluminum   fin
Consenser Type High efficiency coaxial tube in tube
water flow m3/h 3.2 5.8 6.7 11 13.8 17 20 25.2 26.6 31.8
water resistance KP 20 26 28 36 38 42 35 42 40 46
water inlet/outlet pipe(Rc) 1 1-1/2 1-1/2 2 2 2 2-1/2 2-1/2 2-1/2 3
Supply air system Fan Type Double inlet centrifugal fan with low noise
Drive type Belt drive
Motor power kw 0.37(0.37) 0.75(0.55) 1.1(1.1) 2.2(1.5) 3.0(2.0) 5.5 5.5 7.5 7.5 11
Air filter Type Nylon filter
Size mm 810*390 1375*500 1375*500 680*840 680*480 715*622 610*622 610*689 610*774 613*774
Qty pc 1 1 1 2 2 4 6 6 6 6
Controller Microcomputer contro
Electric heating power kw 6 9 12 20 27 35 40 50 50 58
Dimension Width mm 900 1480 1480 1780 1780 1780 2150 2150 2150 2350
Length mm 510 555 555 808 808 1210 1210 1210 1210 1210
Height mm 1,689 1900 1900 2100 2100 1670 1920 1920 1920 1920
Weight kg 250 300 340 690 750 950 1500 1550 1600 1800

Note:

1. The standard unit is top discharge without electric heating, with electric heating, side discharge as optional.

2. Only dust type unit have external static pressure.

3. The above performance improved without prior notice.








Detailed Images

1.HIGH EFFICIENCY

Adopt high quality seamless inner threaded copper tube and aluminum fin are closely combined with copper tub and aluminum fin by mechanical expansion tube, to maximize heat transfer effect.

Hydrophilic treatment can effectively reduce the thickness of condensate water film during operation, reduce heat resistance and improve the heat transfer efficiency.

Water-cooled shell and tube (tube in tube) heat exchanger, compact structure, low pressure drop, high heat transfer coefficient.

Adopt high performance fully enclosed scroll compressor, excellent manufacturing technology, stable and reliable performance, low noise and high energy efficiency ratio.

Adopt multi-blade centrifugal fan, impeller by dynamic balance test, low noise and small vibration under long - time running.

风机涡旋压缩机亲水铝箔铜管


2.QUALITY EXCELLENT

The frame and plate adopt panel installation structure, and the panel adopts electrostatic spraying, elegant appearance.                    Adopt branded auto-control components for the refrigeration system manufactured by DANFOSS, SANGINOMIYA,ALOC and etc, with consistent quality.

Refrigeration system including HP/LP switch, expansion valve, drier-filter and other components.

干燥过滤器

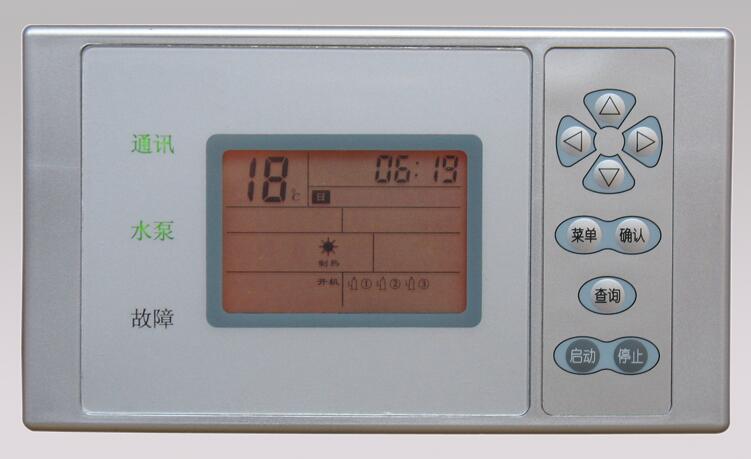

3.INTELLIGENT CONTROL

Controller status display, parameter editing and fault review functions are available on Chinese menu and English menu for easy operation.

Microcomputer controller with well-adaptive and accurate control, temperature control accuracy can be reached ±1℃.

Microcomputer controller has automatic control functions of fault diagnosis, energy management, operation mode.

控制器
