Green GCA Series Modular Air Cooled Heat Pump Chiller

Type: modular air cooled heat pump chiller

Cooling capacity: 65kw*N~130kw*N

Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R410A/R407C

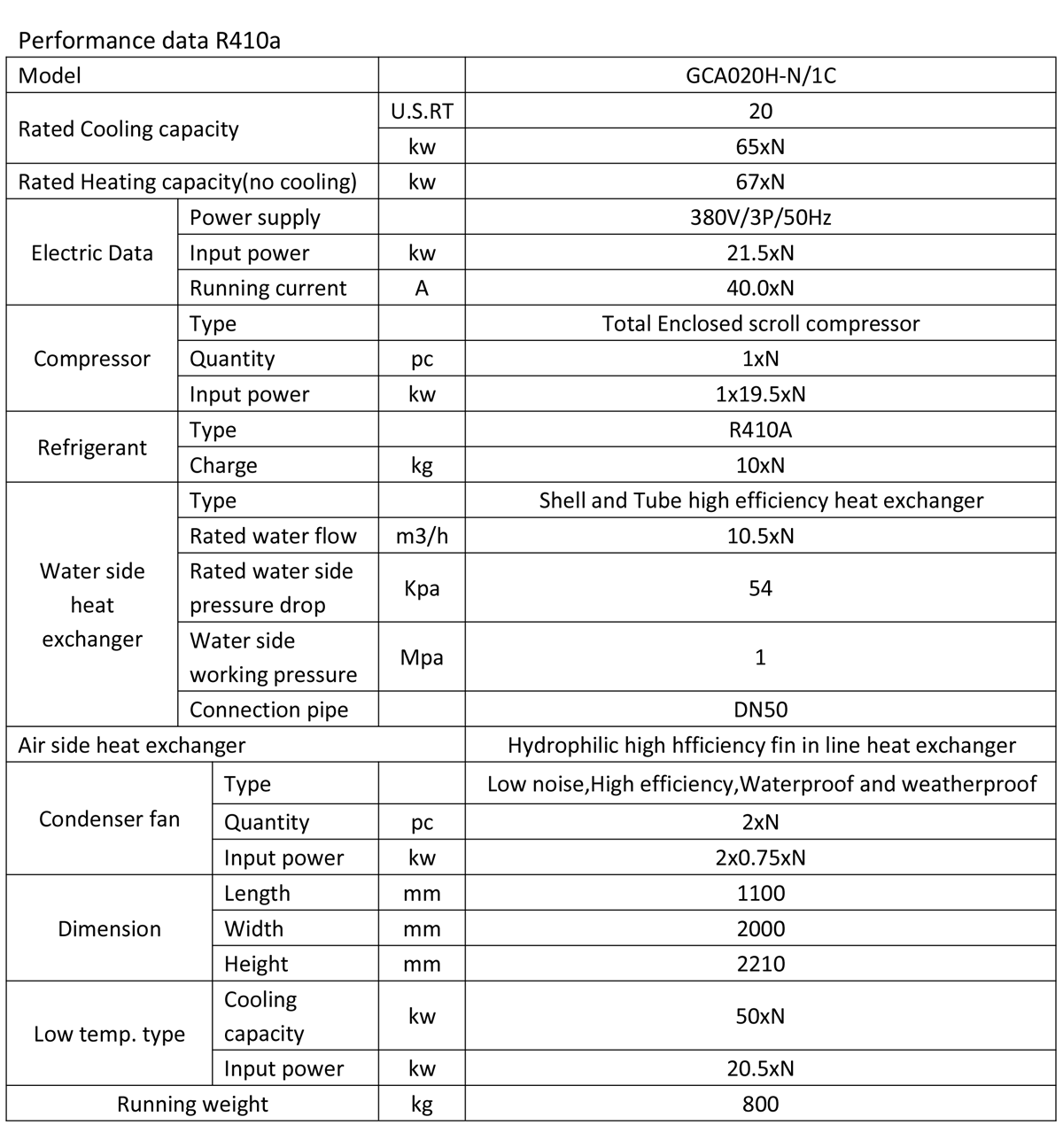

modular air cooled heat pump chiller performance data

Note：

Cooling condition: Chiller water inlet/outlet temp. 12/7℃,ambient temp. 35℃
Heating condition: Heating water inlet/outlet temp. 40/45℃，ambient temp.7℃（DB) 6℃(WB).
N:Module number of combination.
GCA020H can fit with sensible heat recovery as option. The capacity is 15kw,water outlet temp.45℃，pipe connection size is DN25.
GCA020 and GCA040 can select cooling only type for year-round use.
The unit can fit with water pump, water tank, expansion tank as option.

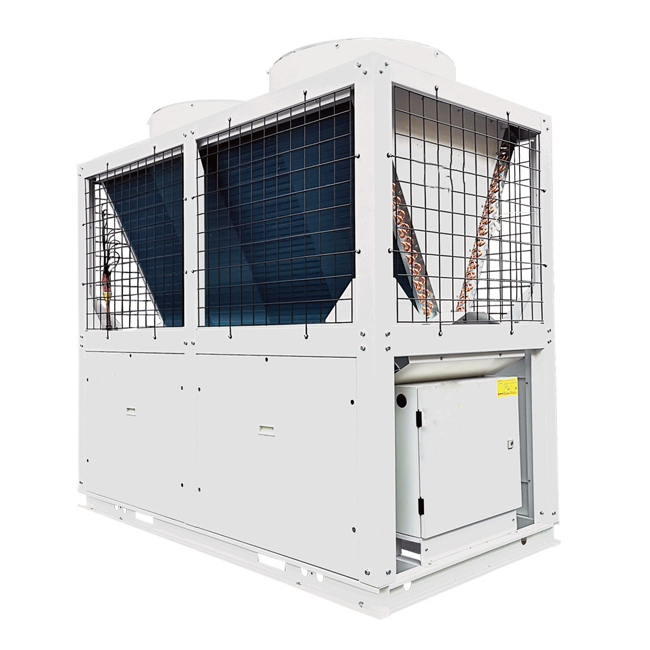

modular air cooled heat pump chiller pic.

Type: modular air cooled heat pump chiller

Cooling capacity: 65kw*N~130kw*N Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R410A/R407C

The running modular unit quantities according to the system needs, each running modular unit run at peak efficiency.
Each modular unit is an independent and complete refrigeration system, and operates in order under the microcomputer control; when there is faulty in one or some units, it won't affect the operation of other modular units.
The whole unit can be disassembled into piece during handling work, easy and comfortable.
The user can buy in stage and install in stage according to current career development needs.
There will be no extra charge except the equipment itself in capacity enlargement.

Dimension

Length：1100 mm

Width：2000 mm

Height：2210 mm

Low temp. type

Cooling capacity：50xN kw

Input power：20.5xN kw

Running weight：800 kg
