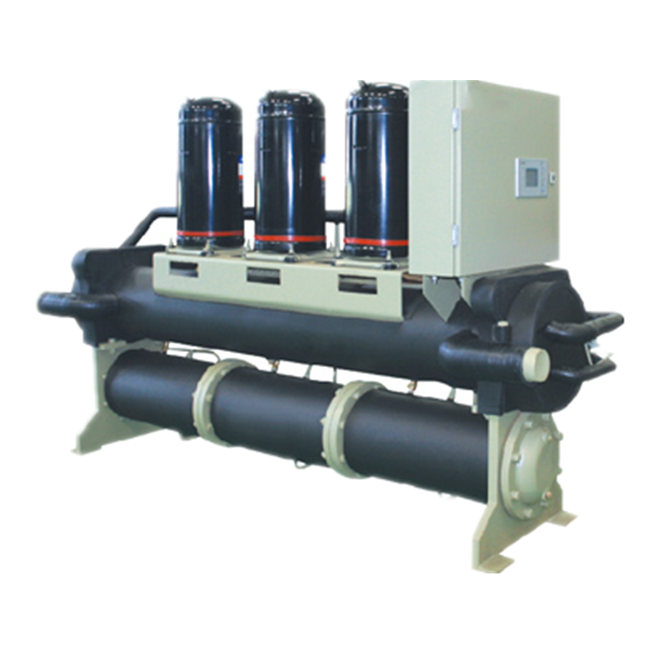

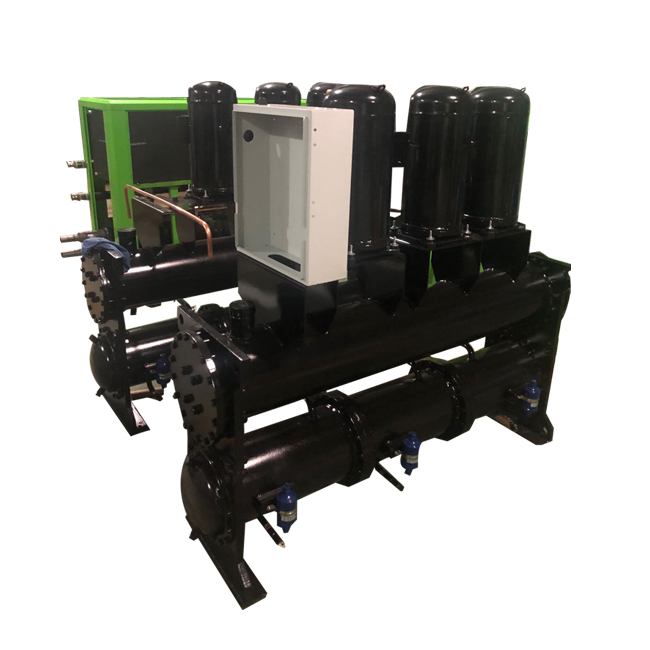

Green GWC Series Modular Water Cooled Scroll Chiller

Type: modular water cooled scroll chiller

Cooling capacity: 64kw*N~113kw*N Model Number: Customize

Operating Voltage: 380/400 VAC Key Selling Points: Famous brand component

Refrigerant: R22/R410A/R407C

• Every module to work as an independent refrigeration circuit.

• In the event of a malfunction in the system, the computer controller selects the next available standby module to provide back up.

• The unit adopts a high-efficiency hermetic scroll compressor with low noise, low vibration and high-efficiency ratio.

• The microcomputer controller has various automatic control protection functions, is able to optimize operating efficiency to ensure highly efficient operation.

• The refrigeration efficiency of the unit can be increased by 5% under heat recovery condition, with low operation cost.

Dimension：

Length(mm)：1866

Width(mm)：500

Height(mm)：1248

Weight(kg)：500

Running weight(kg)：600
