Green GWSF Series Water Cooled Screw Chiller

Type: Water cooled screw chiller
Cooling capacity: 272kw~2152kw
Model Number: Customize
Operating Voltage: 380/400 VAC
Key Selling Points: Famous brand component
Refrigerant: R22/R134a
Availability:
Quantity:
  • GWSF1080AF-GWSF2615AF

  • GREEN

  • GREEN-1

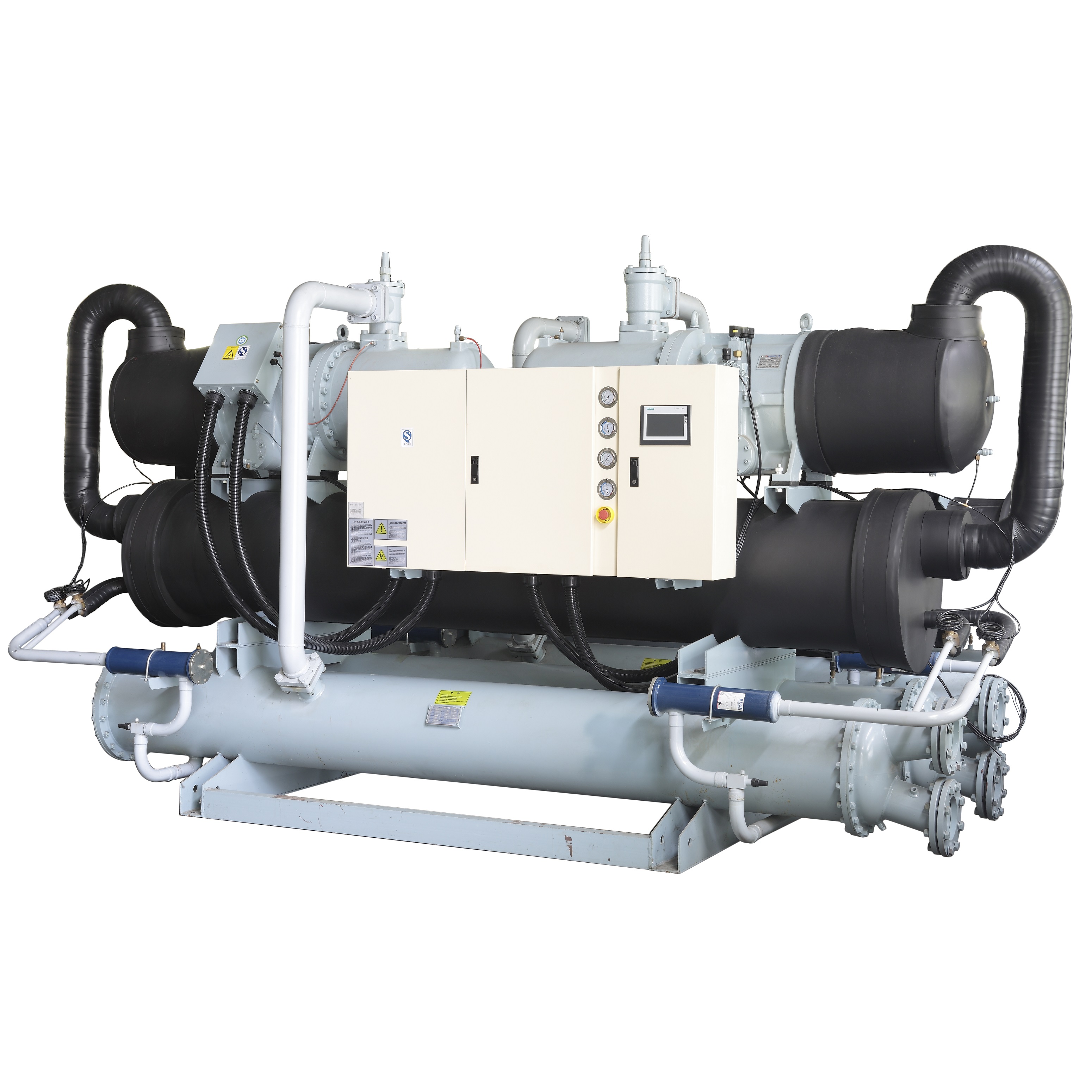

water cooled screw chiller dual



Type: Water cooled screw chiller

Cooling capacity: 272kw~2152kw

Model Number: Customize

Operating Voltage: 380/400 VAC

Key Selling Points: Famous brand component

Refrigerant: R22/R134a



Performance data for single compressor series  R134a

Model    GWSF 1080AF 1090AF 1100AF 1115AF 1125AF 1150AF 1160AF 1175AF 1200AF 1230AF 1250AF 1310AF
Cooling capacity kW 270.5 309.7 336 422.2 444.6 510.2 565.9 608.4 711.7 790 866.3 1033.5
Kcal/h 232664.4 266379.8 288949.7 363067.9 382387 438765.1 486691.2 523193 612079.2 679417.2 744990.5 888768.7
Power   supply                                                                                        3Φ-380V-50HZ
Compressor Type                                                    5-6   Unsymmetrical Dentiform Semi-hermetic Screw Compressor
Quantity PC 1 1 1 1 1 1 1 1 1 1 1 1
Start type Y-△
Energy adjust 25%-100%   Step
Input power kW 50.3 60.2 63.4 76.3 82.5 94.5 103.2 112.1 127.8 147.1 165.2 183.9
Rated current A 88.2 102 109 129.9 141.6 162.2 177.7 193 218.5 259.7 287.9 328.3
Evaporator Type                                                                 Falling   film type high efficiency heat exchanger
Water flow m3/h 46.8 53.6 58.1 73 76.9 88.3 97.9 105.2 123.1 136.7 149.9 178.8
Pipe size Dn  100 100 125 125 125 125 150 150 150 150 200 200
Water pressure drop kPa 48 50 45 50 48 48 53 49 53 54 49 50
Condenser Type                                                                  Shell   and tube high efficiency heat exchanger
Water flow m3/h 57.6 66 71.6 89.9 94.7 108.7 120.5 129.6 151.6 168.3 184.5 220.1
Pipe size Dn 100 100 125 125 125 125 150 150 150 150 200 200
Water pressure drop kPa 70 70 68 66 66 63 63 61 60 58 57 55
heat recovery(option) heat   recovery capacity kW 54.1 62 67.2 84.4 88.9 102.1 113.18 121.7 142.3 158 173.3 206.7
water flow m3/h 9.36 10.72 11.63 14.61 15.38 17.65 19.58 21.05 24.63 27.33 29.97 35.76
Water pressure drop kPa 38 38 36 36 39 39 38 37 38 38 39 40
Pipe size Dn 40 40 40 50 50 50 50 50 65 65 65 65
Refrigerant Type                                                                                               R134a
Charge kg 61 69 95 100 114 127 127 136 159 177 194 232
Dimension Length mm 3020 3020 3050 3050 3050 3082 3082 3082 3082 3112 3181 3206
Width mm 1165 1165 1225 1250 1250 1290 1290 1290 1350 1430 1490 1530
Height mm 1665 1715 1824 1874 1878 1995 1995 1995 1995 2193 2193 2488
Weight kg 2500 2550 2650 2800 2900 3100 3300 3650 3800 4100 4200 4600
Running   weight kg 2650 2700 2800 3000 3050 3300 3600 3850 4050 4350 4450 4950


Note:

  1. The Cooling capacity of above specification are based on chilled water inlet/outlet temperature 12℃/7℃, cooling water inlet/outlet temperature 30℃/35℃.

  2. Operating range: inlet water temperature range of condenser: 19-33℃;The outlet temperature range of evaporator is 5-15℃.

  3. Under nominal working conditions, the heat recovery hot water inlet/outlet temperature 40/45℃.


Detailed Images

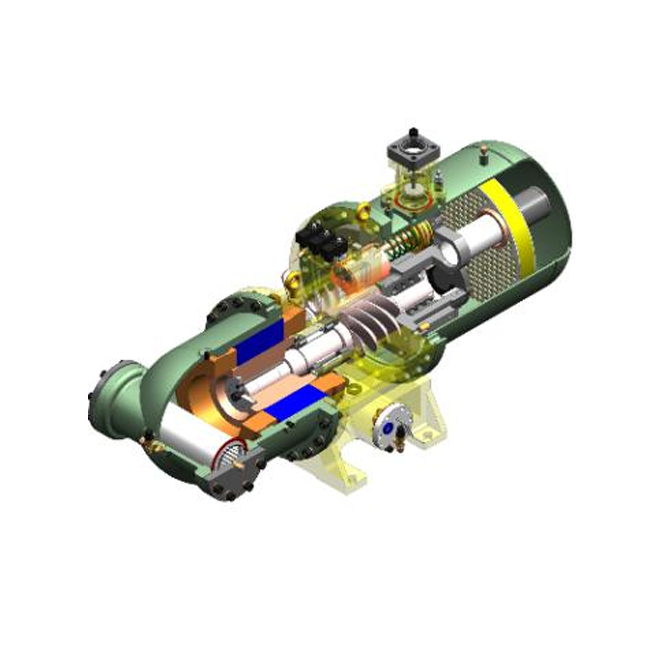

high efficient screw compressor




Name: High Efficient Screw Compressor

Brand: Hanbell /Bitzer

Original: Taiwan / Germany

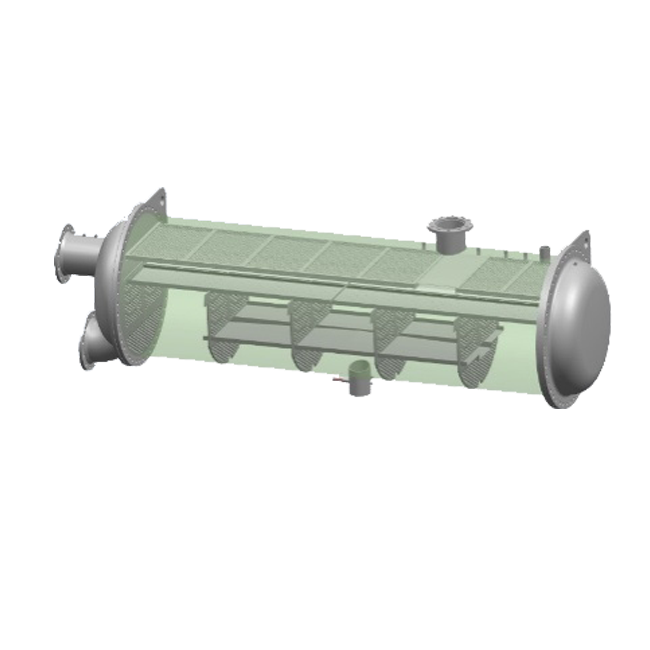

high efficient falling film evaporator

Name: High Efficient Falling film Evaporator

Original: China


high efficient flooded evaporatorName: High Efficient Flooded  Evaporator

Original: China

 ●  EVAPORATOR: The evaporator (shell&tube) is single-pass on both the refrigerant and water sides for pure counterflow heat exchange and low refrigerant pressure drops.

 ●  CONDENSER: Shell & tube condenser with water flowing inside the tubes and refrigerant condensing outside. The bottom of the condenser is provided with subcoller section fo better refrigerant capacity. The tubes are enhanced for maximum heat transfer and rolled into steel tube sheet and sealed.

 ●  COMPRESSOR: Hanbell semi-hermetic compressor, screw type with gate-rotors made of carbon impregnated engineered composite material. The compressor has one or two slides managed by the unit microporcessor modulating the capacity from 100% down to 25%. An integrated high efficiency oil separator maximizes to the oil separation and standard start is Wye-Delta(Y-Δ) type.

   REFRIGERANT CIRCUIT: Each unit has one independent refrigerant circuit and includes: compressor with integrated oil separator, Expansion valve, Filter drier, Charging valves, Liquid line shut off valve, Sight glass with moisture indicator, High pressure switch, High pressure transducers, Low pressure transducers, Oil pressure transducer, Suction temperature sensor.

 ●  ELECTRICAL: Control and power sections are located into the main electrical panel that is manufactured to  ensure protection against all weather conditions. The electrical is IP45 and intrnally protected with plexyglas panel against possible accidental contact with electrical component (IP20 when doors are open). The main panel doors are interlocked to the main switch(standard) in order to guarantee safe operation when the doors are open.

 ●  CONTROLLER: Siemens type. Providing monitoring and control functions required for an efficient and trouble free operation of the chiller. Sophisticated software with predictive logic selects the most energy efficient combination of compressor load and electronic expansion valve position keeping stable operating conditions and maximizing chiller efficiency and reliability.
